Large Panel Sizing Saw Blades

  1. Usage: chipboard-based materials and MDF coated
  2. Machine: panel sizing saw

We can produce the circular saw blades for you.

In case you did not find the type of circular saw blades you require in our catalogue, please contact us. We will make them upon your specification.

Large Panel Sizing Saw Blades

Large Panel Sizing Saw Blades

  • specially designed for cutting chipboard-based materials and MDF
  • in combination with conical scoring saw blade there is excellent cutting performance
  • extremely long life-time of carbide tips
  • TCT panel sizing saw blades are manufactured specially on request of our customer in particular dimensions

Highlighted items on the list are standard hold on stocked, the other items are manufactured specially on request.

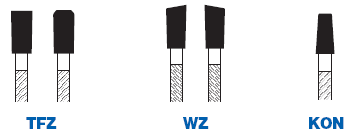

Panel saw bladeScoring saw bladeboresMachine type
250 x 3,2/2,2 x 30 60TFZ L180 x 3,1 – 4,2/2,5 x 20 36KON/WZHöfer PS
250 x 3,2/2,2 x 30 60TFZ L125 x 3,1 – 4,2/2,2 x 20 24KON 2/10/60+2/7/42Panhans Euro 5, Euro 5SF
300 x 3,2/2,8 x 75 68TFZ L125 x 3,1 – 4,2/2,2 x 45 24KONGiben Fastmatic
300 x 4,4/3,2 x 30 60TFZ L180 x 4,3 – 5,6/3,2 x 20 36KON/WZHöfer PS
300 x 4,4/3,2 x 30 60TFZ L 125 x 4,3 – 5,4/3,2 x 20 24KONPanhans 693/SH 50
300 x 4,4/3,2 x 30 60TFZ L200 x 4,3 – 5,1/3,5 x 30 34KONPanhans Euro 10.1, Euro 10SF
300 x 4,4/3,2 x 30 60TFZ L200 x 4,3 – 5,1/3,5 x 30 34KONPanhans 693/SH 70
300 x 4,4/3,2 x 75 60TFZ L125 x 4,3 – 5,4/3,0 x 45 24KONHomag Espana CH03
300 x 4,4/3,2 x 75 60TFZ L150 x 4,3 – 5,6/3,2 x 45 24KON/WZHomag Espana CT04
350 x 4,4/3,2 x 30 72TFZ L200 x 4,3 – 5,1/3,5 x 30 34KON4/9/100Panhans Euro30 Panhans, Euro30SF Panhans 693/SH90
350 x 4,4/3,2 x 30 72TFZ L 200 x 4,3 – 5,1/3,5 x 20 34KON 4/9/100Schelling FI, FM
350 x 4,4/3,2 x 30 72TFZ L 160 x 4,3 – 5,6/3,5 x 55 36KON/WZ4/9/100SCM Z15, Z32, Z45
350 x 4,4/3,2 x 30 72TFZ L200 x 4,3 – 5,1/3,5 x 20 34KON4/9/100Höfer PM
350 x 4,4/3,2 x 75 72TFZ L 150 x 4,3 – 5,6/3,2 x 45 24KON/WZHomag Espana CH06/10
355 x 4,4/3,2 x 75 60TFZ L125 x 4,3 – 5,4/3,0 x 45 24KON4/15/105Giben MK Gamma N
355 x 4,4/3,2 x 75 60TFZ L125 x 4,3 – 5,4/3,0 x 45 24KON 4/15/105Giben Trend Gamma ST, Giben Gamma SE
380 x 4,4/3,0 x 75 72TFZ L125 x 4,3 – 5,4/3,2 x 45 24KONHolzher 6180, 6280, 8380
380 x 4,4/3,0 x 75 72TFZ L150 x 4,3 – 5,6/3,2 x 45 24KON/WZHolzher 6480, 6580, 6680
380 x 4,8/3,5 x 60 84TFZ L 200 x 4,7 – 5,8/3,0 x 45 36KONHolzma HPP81, HPL81, 91
400 x 4,4/3,2 x 30 72TFZ L200 x 4,3 – 5,1/3,5 x 20 34KONHöfer PM
400 x 4,4/3,2 x 30 72TFZ L 200 x 4,3 – 5,1/3,5 x 30 34KON4/9/100Panhans 693/SH 110
400 x 4,4/3,2 x 30 72TFZ L200 x 4,3 – 5,1/3,5 x 20 34KONSchelling FW/AW, AK
400 x 4,4/3,2 x 60 72TFZ L180 x 4,3 – 5,6/3,5 x 20 30KON/WZAnthon LN (90)
400 x 4,4/3,2 x 60 72TFZ LAnthon Porta 100
400 x 4,4/3,2 x 75 72TFZ L125 x 4,3 – 5,4/3,0 x 45 24KON4/15/105Giben MK 2 Giben G2000
400 x 4,4/3,2 x 75 72TFZ L 160 x 4,3 – 5,6/3,2 x 45 28KON/WZ4/15/105Giben Prismatic 101
400 x 4,4/3,2 x 75 72TFZ L215 x 4,3 – 5,2/3,0 x 50 42KON4/15/105Giben Prismatic 201
400 x 4,4/3,2 x 75 72TFZ L300 x 4,3 – 5,6/3,2 x 50 48KON4/15/105Giben Prismatic 201
400 x 4,4/3,2 x 75 72TFZ L150 x 4,3 – 5,6/3,2 x 45 24KON/WZ 4/15/105Homag Espana CH12
400 x 4,4/3,2 x 80 72TFZ L200 x 4,3 – 5,6/3,0 x 65 36KON/WZ2/9/130 +4/19/120Selco WN 200, WNT 200
430 x 4,4/3,2 x 80 72TFZ L200 x 4,3 – 5,6/3,0 x 65 36KON/WZ2/9/130 +4/19/120Selco WN 200, WNT 200
430 x 4,4/3,2 x 80 72WZ L200 x 4,3 – 5,6/3,0 x 65 36KON/WZ2/9/130 +4/19/120Selco WN 200, WNT 200
450 x 4,4/3,2 x 30 72TFZ L200 x 4,3 – 5,1/3,5 x 20 34KONSchelling FL/AL
450 x 4,4/3,2 x 30 72WZ L200 x 4,3 – 5,1/3,5 x 20 34KONSchelling FL/AL
450 x 4,4/3,2 x 30 72WZ L2/9/130 +4/19/120Schwabedissen S50, S50CNC
420 x 4,8/3,5 x 60 84TFZ L 180 x 4,7 – 5,8/3,5 x 45 36KONHolzma HFL02, HPP02, HPP11
450 x 4,8/3,5 x 60 84TFZ L180 x 4,7 – 5,8/3,5 x 45 36KONHolzma HPP11
470 x 4,4/3,2 x 75 96TFZ L215 x 4,3 – 5,2/3,0 x 50 42KONSelco WN 200, WNT 200
470 x 4,4/3,2 x 75 96TFZ L300 x 4,3 – 5,6/3,2 x 50 48KONGiben Prismatic 2
500 x 4,8/3,5 x 60 72TFZ L200 x 4,7 – 5,8/3,0 x 45 36KON2/11/85Giben Prismatic 2
550 x 5,0/3,5 x 100 72TFZ L180 x 4,9 – 6,0/3,5 x 55 30KON/WZHolzma Type 22
600 x 5,8/4,2 x 60 72TFZ L200 x 5,7 – 6,8/4,2 x 45 34KONGiben Matic H150
670 x 5,8/4,1 x 60 72TFZ L200 x 5,7 – 6,8/4,2 x 45 34KONHolzma HFL42, HPP42
680 x 6,2/4,2 x 40 60TFZ L200 x 6,1 – 7,0/4,5 x 20 34KON/WZHolzma HFL61, HPP61
700 x 6,2/4,2 x 80 60TFZ L200 x 6,1 – 7,0/4,5 x 20 34KON/WZSchelling AS
700 x 6,2/4,2 x 80 60TFZ L200 x 6,1 – 7,0/4,5 x 20 34KON/WZAnthon LNB (150)

Pinholes can be lasered in any parameters on customer´s request.

In case that you did not find the type of saw blades which you require in our catalogue, please contact us. We will make them upon your specification.
